# Customize Charts with JSON

<figure><img src="/files/T1Mtyool7TOg0q1OJZui" alt="" width="375"><figcaption></figcaption></figure>

### 🧭 Overview <a href="#overview" id="overview"></a>

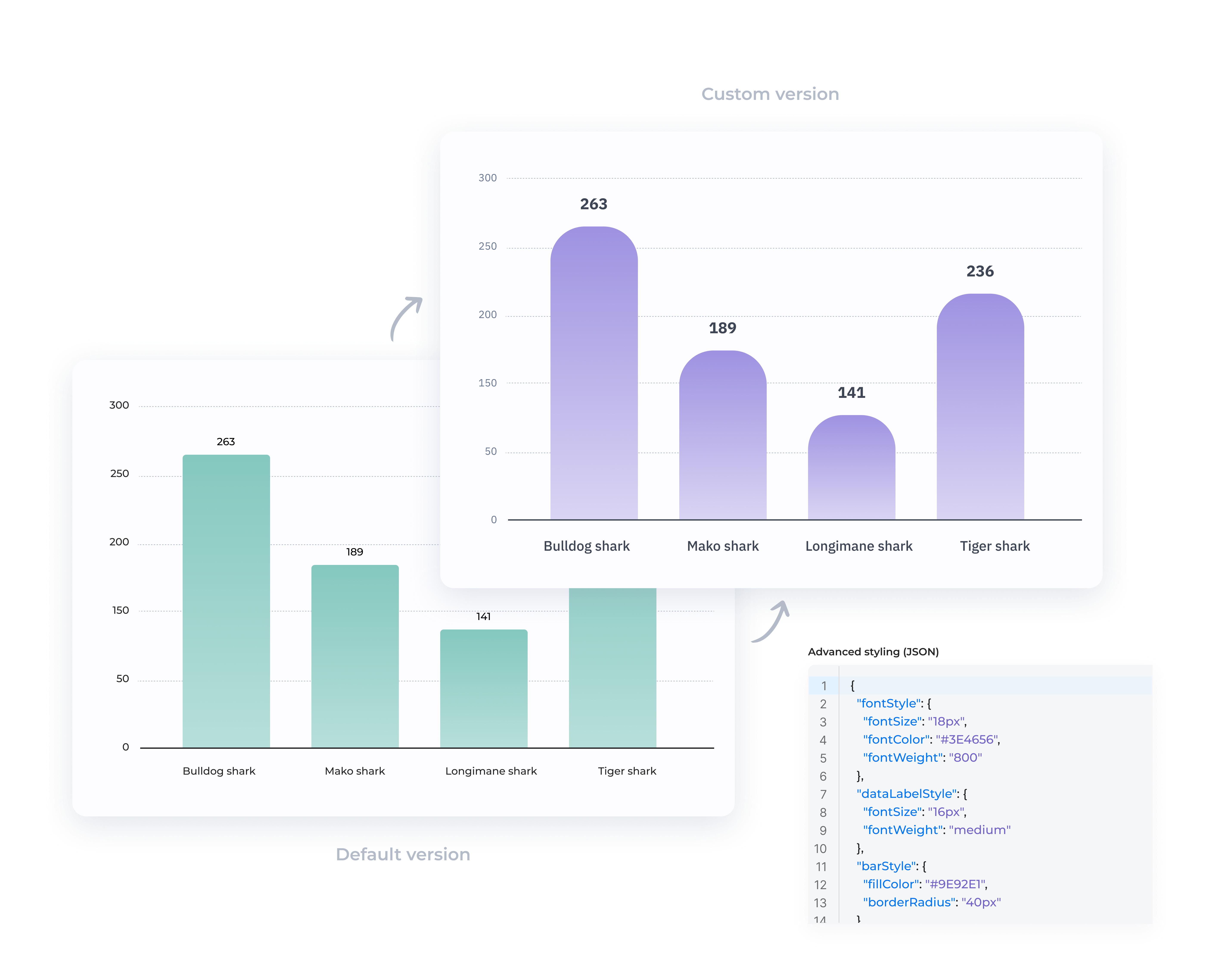

JSON Prefilled Code Mode allows you to personalize your charts by directly editing pre-filled JSON templates.\
Instead of writing CSS or code from scratch, you simply adjust structured JSON values such as colors, fonts, sizes, borders, and spacing.

* **App-level JSON**: applies global styling across all chart types.
* **Chart-level JSON**: applies specific styling to a single chart (only the relevant section of code is included).

This feature makes customization accessible for everyone - from builders to non-technical users -while maintaining brand consistency and readability across dashboards.

The feature is available for the following chart designs:

* New Heatmap
* New Barchart
* New Linechart
* New Bubblechart
* New Leaderboard
* New Barlinechart
* New Circularchart
* New Stackedbarchart

***

### How It Works <a href="#how-it-works" id="how-it-works"></a>

* Open the **Customization panel** at the app level to apply bulk styling.
* Open a specific chart’s **Chart configuration → Style tab** to edit chart-level JSON.
* Modify the JSON properties. Changes are instantly reflected in your charts.
* Built-in **error detection** will alert you if something is misconfigured.

#### ✨ App-Level Customization (Global Styling)

**Use case:** Apply a unified look across all charts in your app for brand consistency.

**Steps:**

1. Go to your app’s **Customization** panel.
2. Find the **JSON styling section**.
3. Edit the JSON (fonts, colors, borders, etc.).
4. Save and apply — changes will reflect on all supported charts.

{% @arcade/embed url="<https://app.arcade.software/share/AeTpxd84xO2tvG4Mm0MC>" flowId="AeTpxd84xO2tvG4Mm0MC" %}

#### 🧩 Chart-Level Customization (Individual Styling)

**Use case:** Adjust the appearance of one specific chart.

**Steps:**

1. Open your **chart configuration**.
2. Got to **style** tab.
3. Enter or adjust the pre-filled JSON.
4. Save to apply changes to that chart only.

{% @arcade/embed url="<https://app.arcade.software/share/AhRccIxR2dke1qj6nJHq>" flowId="AhRccIxR2dke1qj6nJHq" %}

***

### JSON Structure by Chart Type <a href="#json-structure-by-chart-type" id="json-structure-by-chart-type"></a>

### Barchart <a href="#barchart" id="barchart"></a>

<details>

<summary>JSON Default: Barchart</summary>

```
{
  "barchart": {
    "axisLabel": {
      "fontSize": 12,
      "fontWeight": 500,
      "color": "#172134"
    },
    "bars": {
      "minWidth": 16,
      "minWidthCompact": 8,
      "maxWidth": 110,
      "maxWidthCompact": 55,
      "borderRadius": 5,
      "gap": 16,
      "gapCompact": 8,
      "crossfilterShadowBlur": 10,
      "lighterColorPercent": 0.45
    },
    "dataLabel": {
      "borderRadius": 4,
      "minWidth": 304,
      "minWidthCompact": 200
    },
    "dataZoom": {
      "backgroundColor": "#F0F1F4",
      "color": "#88B2A8"
    },
    "legends": {
      "fontSize": 14,
      "fontWeight": 500
    },
    "value": {
      "color": "#172134",
      "fontSize": 12,
      "fontSizeCompact": 12,
      "fontWeight": 600,
      "fontWeightCompact": 600
    }
```

</details>

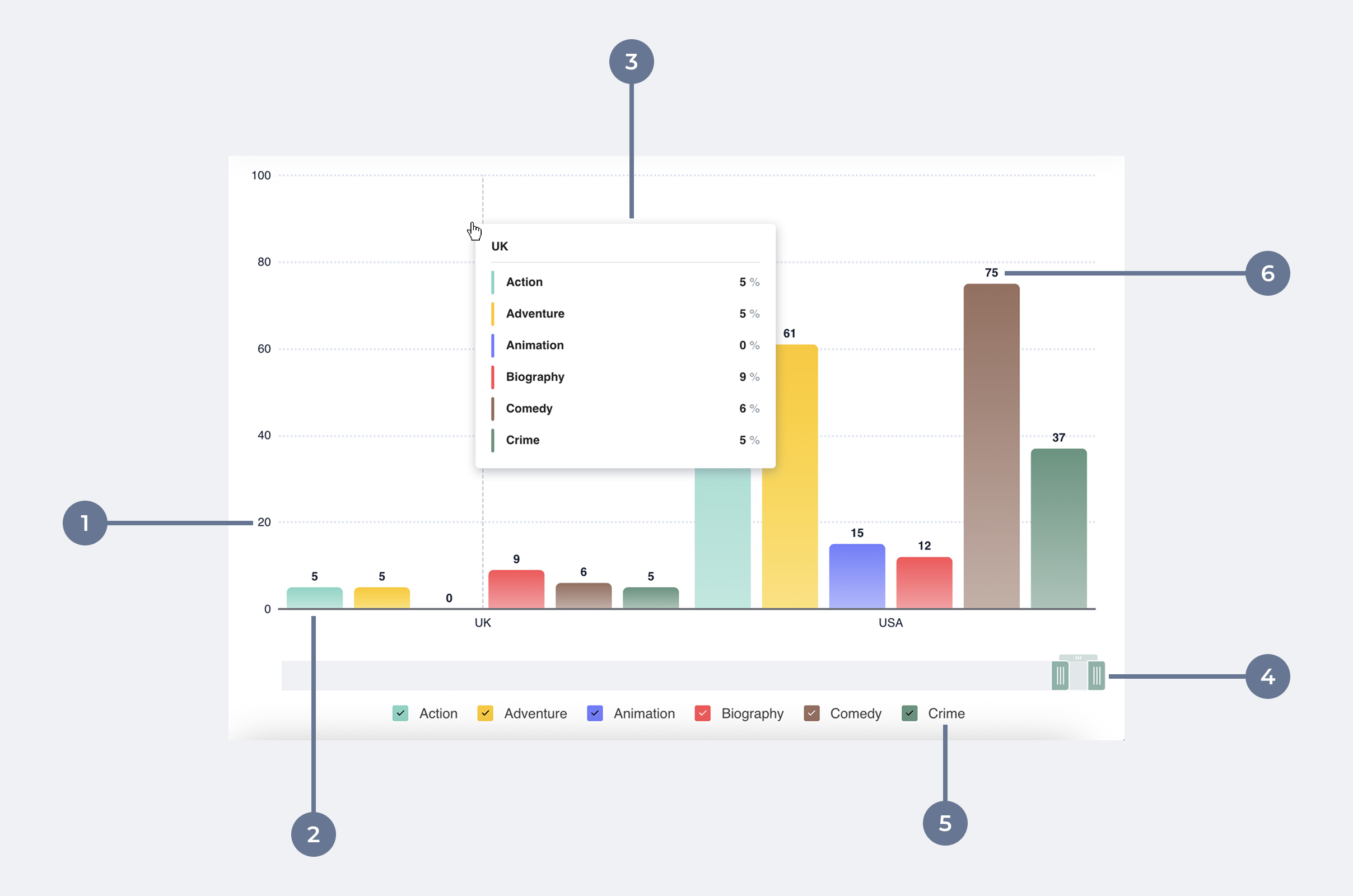

<figure><img src="/files/UIvydV25PbiAwjmBLXwC" alt=""><figcaption></figcaption></figure>

1: Axis-Label

2: Bars

3: Datalabel

4: Datazoom

5: Legends

6: Value

***

### Linechart <a href="#linechart" id="linechart"></a>

<details>

<summary>JSON Default: Linechart</summary>

```
{
  "linechart": {
    "axisLabel": {
      "fontSize": 12,
      "fontWeight": 500,
      "color": "#172134"
    },
    "dataLabel": {
      "borderRadius": 4,
      "minWidth": 304,
      "minWidthCompact": 200
    },
    "legends": {
      "fontSize": 14,
      "fontWeight": 500
    },
    "lines": {
      "width": 3,
      "smooth": true
    },
    "value": {
      "color": "#172134",
      "fontSize": 12,
      "fontSizeCompact": 12,
      "fontWeight": 600,
      "fontWeightCompact": 600
    }
```

</details>

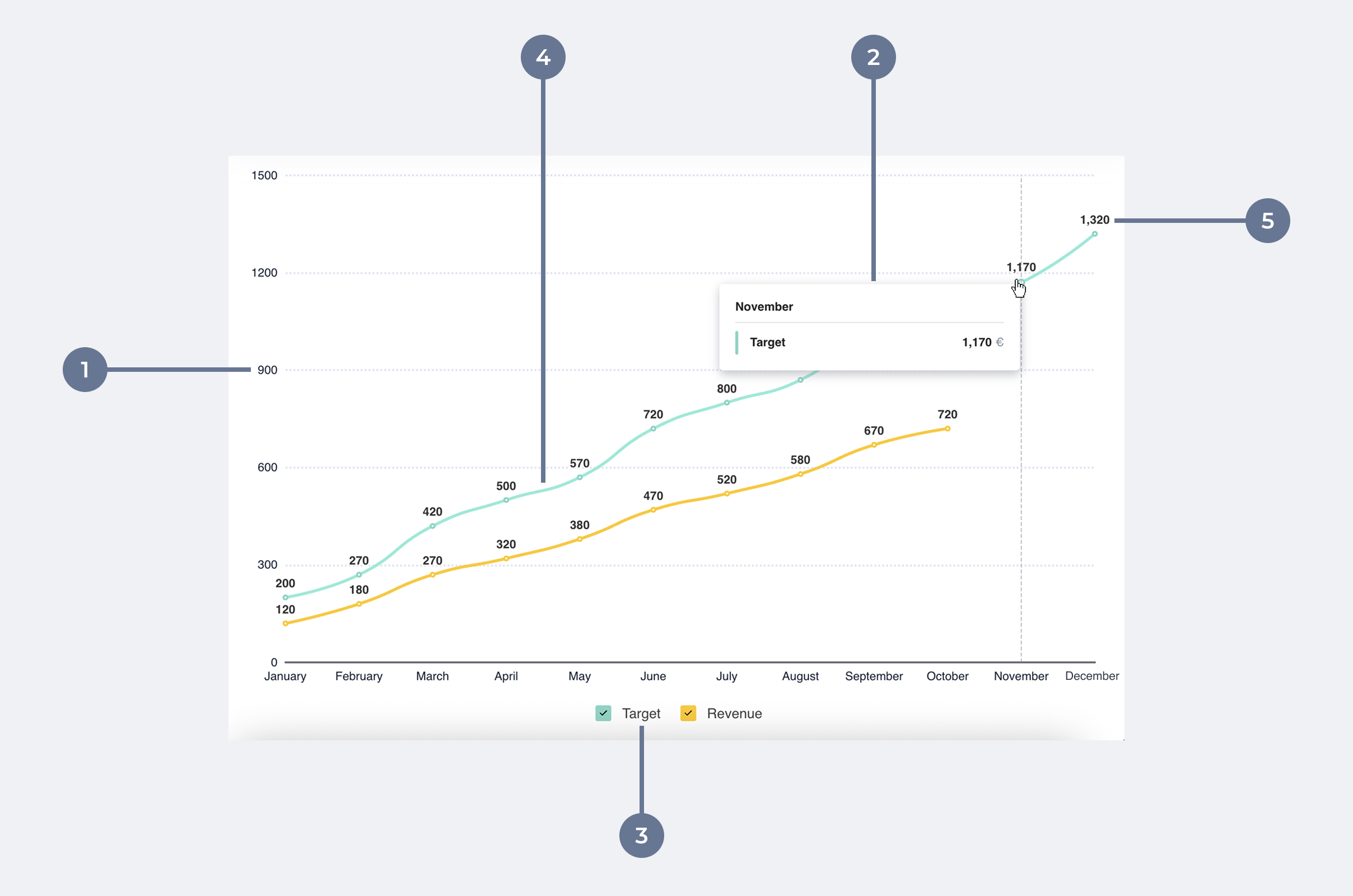

<figure><img src="/files/cyg1OgZOE9YBEuu23L1B" alt=""><figcaption></figcaption></figure>

1: Axis-label

2: Datalabel

3: Legends

4: Lines

5: Value

***

### Stackedbarchart <a href="#stackedbarchart" id="stackedbarchart"></a>

<details>

<summary>JSON Default: Stackedbarchart</summary>

```
{
  "stacked-barchart": {
    "axisLabel": {
      "fontSize": 12,
      "fontWeight": 500,
      "color": "#172134"
    },
    "bars": {
      "minWidth": 16,
      "minWidthCompact": 8,
      "maxWidth": 110,
      "maxWidthCompact": 55,
      "borderRadius": 5,
      "gap": 16,
      "gapCompact": 8,
      "crossfilterShadowBlur": 10,
      "lighterColorPercent": 0.45
    },
    "dataLabel": {
      "borderRadius": 4,
      "minWidth": 304,
      "minWidthCompact": 200
    },
    "dataZoom": {
      "backgroundColor": "#F0F1F4",
      "color": "#88B2A8"
    },
    "legends": {
      "fontSize": 14,
      "fontWeight": 500
    },
    "value": {
      "color": "#172134",
      "fontSize": 12,
      "fontSizeCompact": 12,
      "fontWeight": 600,
      "fontWeightCompact": 600
    }
```

</details>

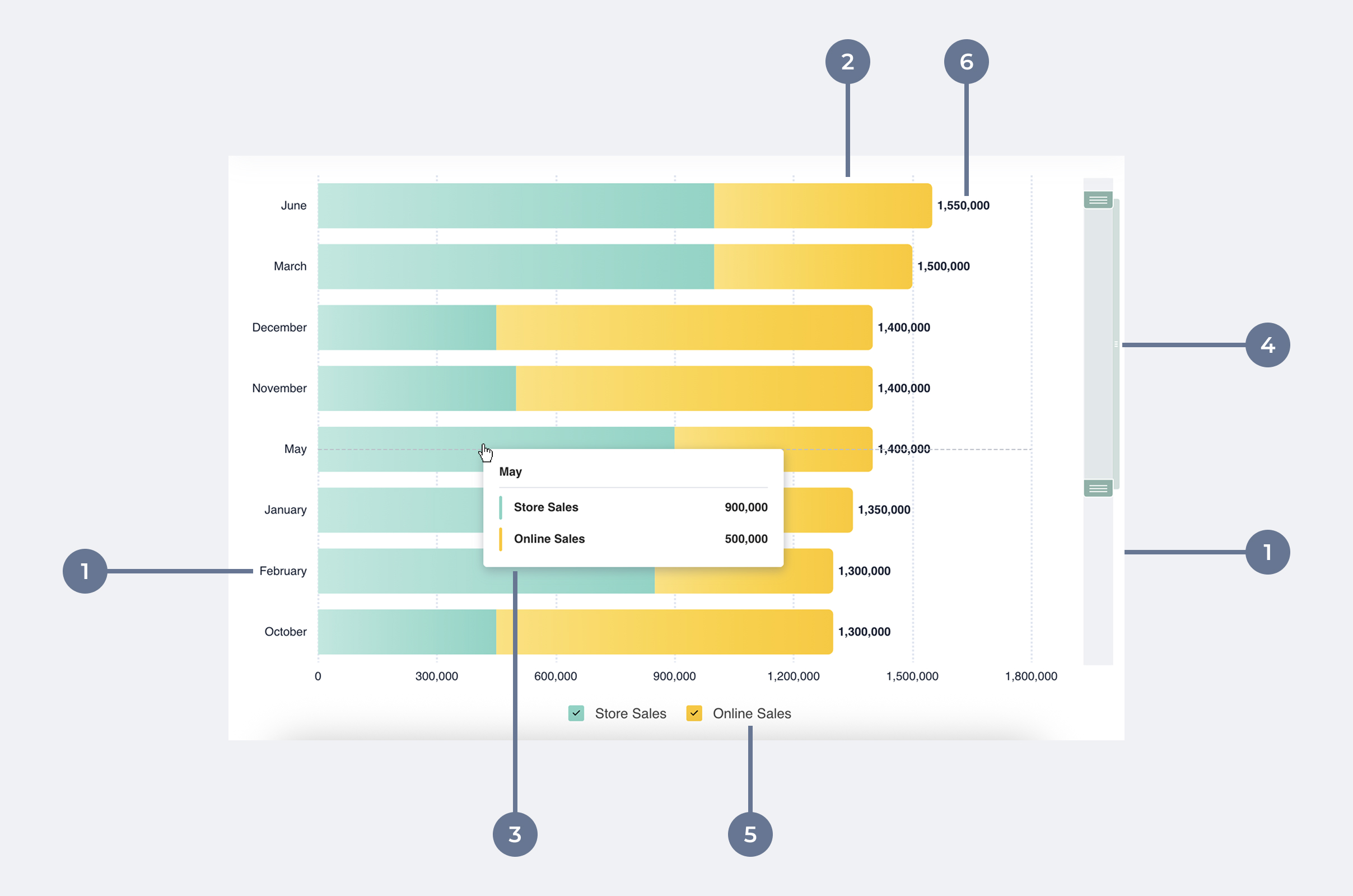

<figure><img src="/files/VAyXGQO9TeYHm4VXkTs9" alt=""><figcaption></figcaption></figure>

1: Axis-label

2: Bars

3: Datalabel

4: Datazoom

5: Legends

6: Value

***

### Barlinechart <a href="#stackedbarchart" id="stackedbarchart"></a>

<details>

<summary>JSON Default: Barlinechart</summary>

{\
"barlinechart": {\
"axisLabel": {\
"fontSize": 12,\
"fontWeight": 500,\
"color": "#172134"\
},\
"bars": {\
"minWidth": 16,\
"minWidthCompact": 8,\
"maxWidth": 110,\
"maxWidthCompact": 55,\
"borderRadius": 5,\
"gap": 16,\
"gapCompact": 8,\
"crossfilterShadowBlur": 10,\
"lighterColorPercent": 0.45\
},\
"dataLabel": {\
"borderRadius": 4,\
"minWidth": 304,\
"minWidthCompact": 200\
},\
"dataZoom": {\
"backgroundColor": "#F0F1F4",\
"color": "#88B2A8"\
},\
"legends": {\
"fontSize": 14,\
"fontWeight": 500\
},\
"lines": {\
"width": 3,\
"smooth": true\
},\
"value": {\
"color": "#172134",\
"fontSize": 12,\
"fontSizeCompact": 12,\
"fontWeight": 600,\
"fontWeightCompact": 600\
}

</details>

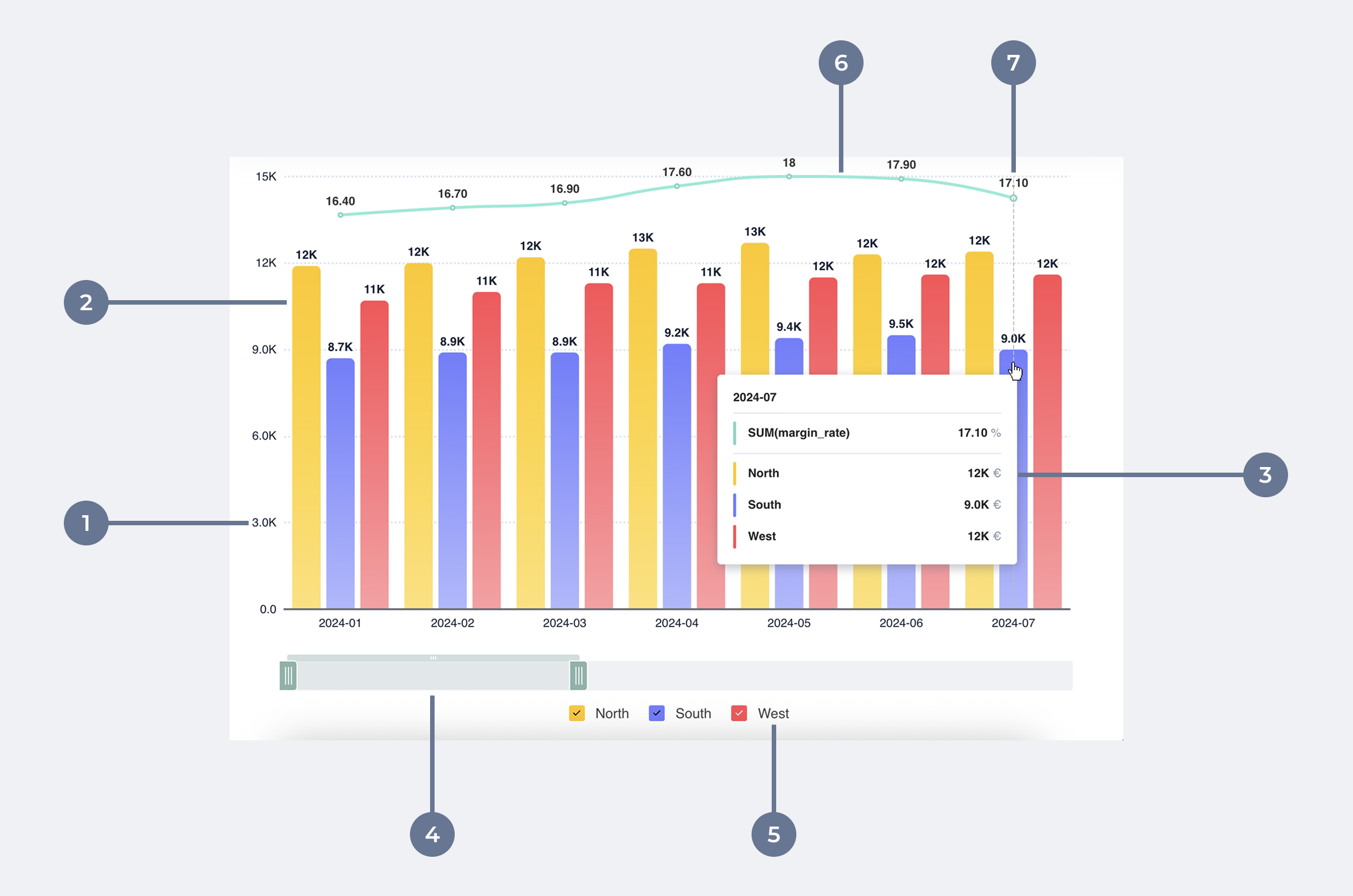

<figure><img src="/files/cEqWNBkFWMDnaC3QIjMa" alt=""><figcaption></figcaption></figure>

1: Axis-label

2: Bars

3: Datalabel

4: Datazoom

5: Legends

6: Lines

7: Value

***

### Circularchart <a href="#stackedbarchart" id="stackedbarchart"></a>

<details>

<summary>JSON Default: Circularchart</summary>

{\
"circularchart": {\
"arcs": {\
"borderRadius": 4,\
"borderRadiusCompact": 2,\
"legendLineWidth": 36,\
"lighterColorPercent": 0.45\
},\
"categoryLabel": {\
"color": "#172134",\
"fontSize": 16,\
"fontSizeCompact": 14,\
"fontWeight": 600,\
"fontWeightCompact": 400\
},\
"dataLabel": {\
"borderRadius": 4,\
"minWidth": 304,\
"minWidthCompact": 200\
},\
"legends": {\
"fontSize": 14,\
"fontWeight": 500\
},\
"value": {\
"color": "#172134",\
"fontSize": 12,\
"fontSizeCompact": 12,\
"fontWeight": 600,\
"fontWeightCompact": 600\
}

</details>

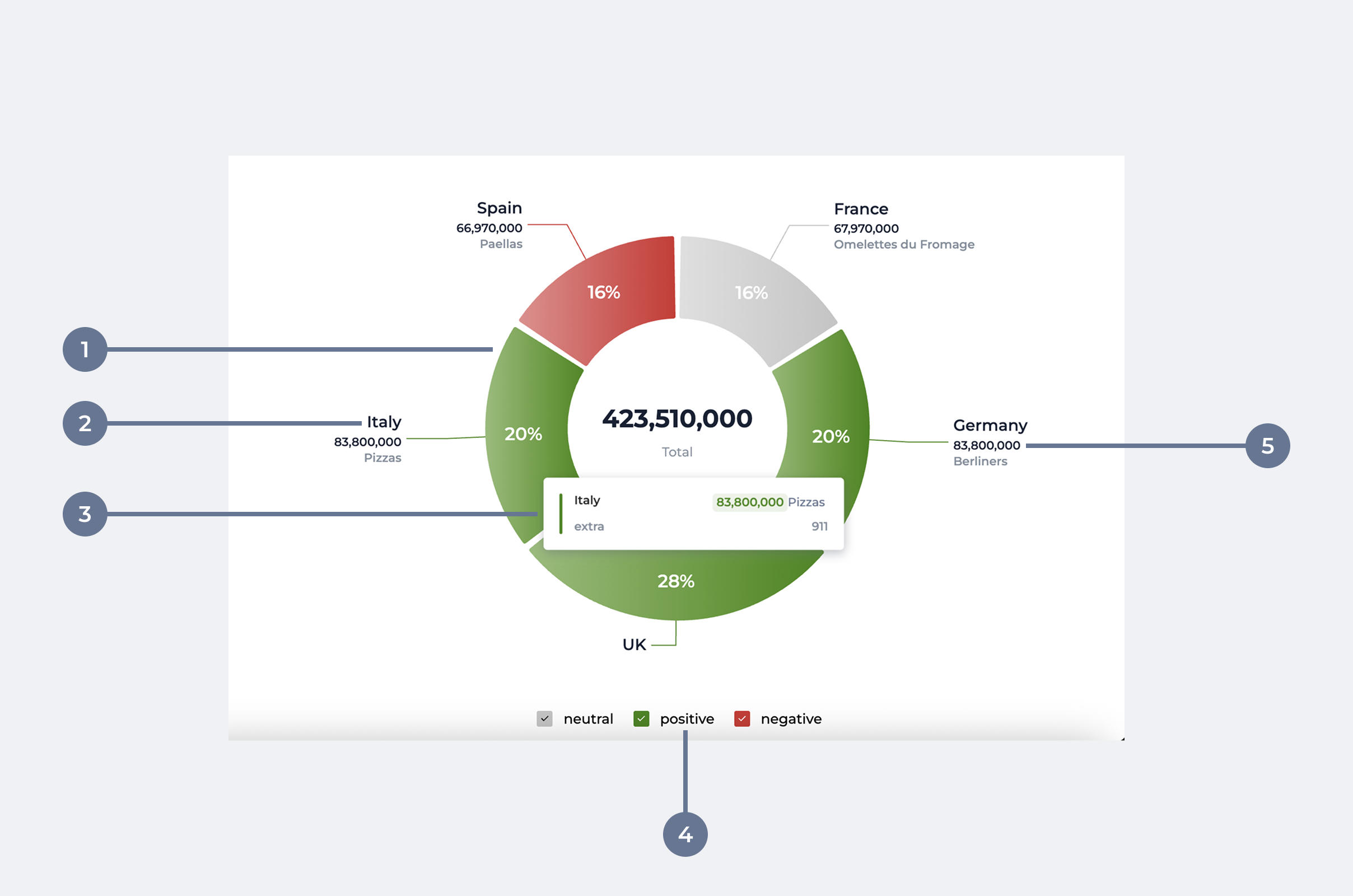

<figure><img src="/files/G5fSNCugSpQMtqCMZfdl" alt=""><figcaption></figcaption></figure>

1: Arcs

2: Categorylabel

3: Datalabel

4: Legends

5: Value

***

### Heatmap <a href="#stackedbarchart" id="stackedbarchart"></a>

<details>

<summary>JSON Default: Heatmap</summary>

{\
"heatmap": {\
"rects": {\
"borderRadius": 8,\
"strokeLineWidth": 3,\
"strokeColor": "#525E75",\
"valueFontSize": 16,\
"valueFontWeight": 600,\
"subValueFontSize": 12,\
"subValueFontWeight": 600\
},\
"axisLabel": {\
"fontSize": 12,\
"fontWeight": 500,\
"color": "#172134"\
},\
"dataLabel": {\
"borderRadius": 4,\
"minWidth": 304,\
"minWidthCompact": 200\
},\
"dataZoom": {\
"backgroundColor": "#F0F1F4",\
"color": "#88B2A8"\
}

</details>

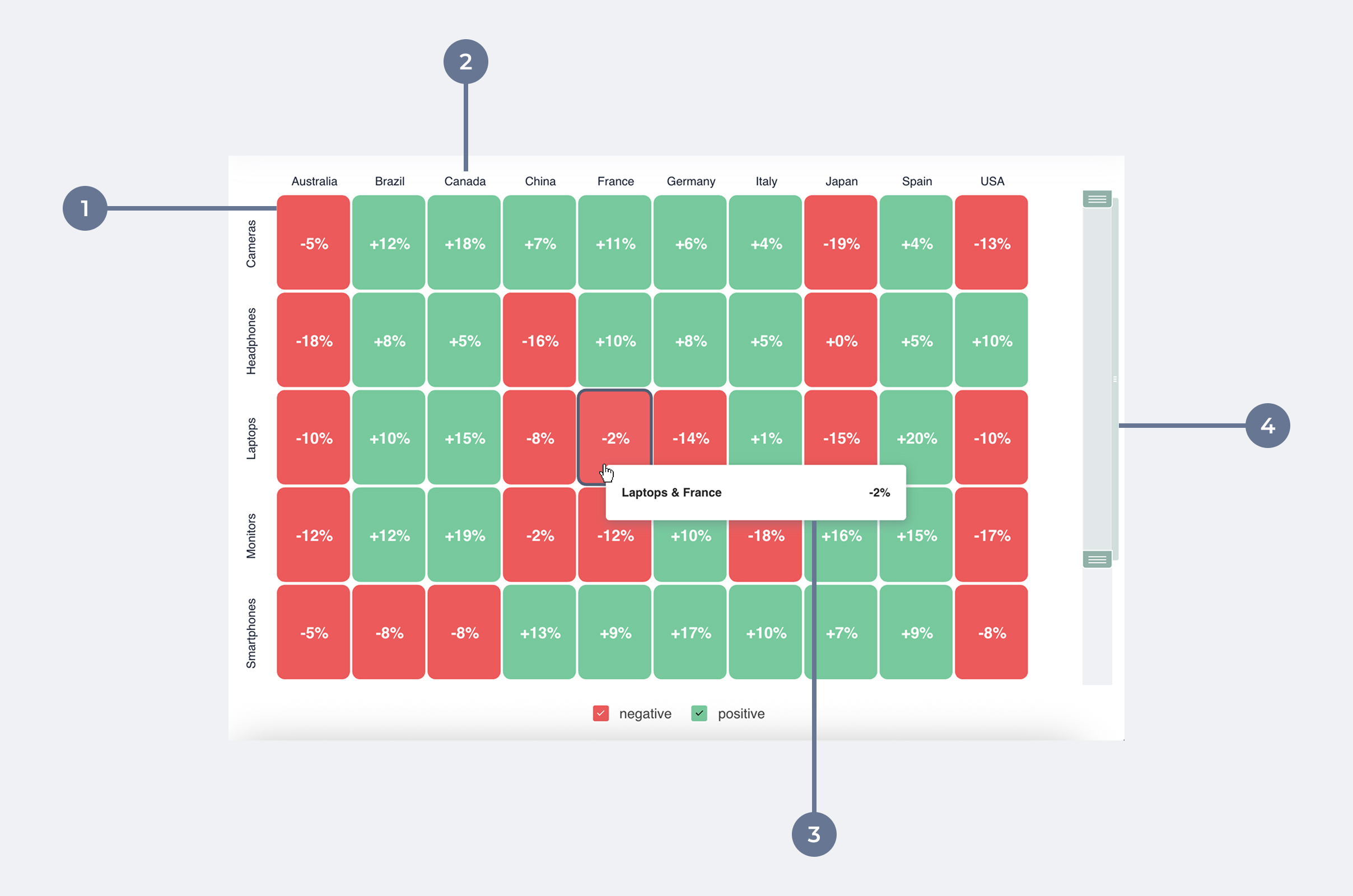

<figure><img src="/files/H6B2FlIOjLqyC6WfkloW" alt=""><figcaption></figcaption></figure>

1: Rects

2: Axislabel

3: Datalabel

4: Datazoom

***

### Bubblechart <a href="#stackedbarchart" id="stackedbarchart"></a>

<details>

<summary>JSON Default: Bubblechart</summary>

{\
"bubblechart": {\
"axisLabel": {\
"fontSize": 12,\
"fontWeight": 500,\
"color": "#172134"\
},\
"dataLabel": {\
"borderRadius": 4,\
"minWidth": 304,\
"minWidthCompact": 200\
},\
"value": {\
"color": "#172134",\
"fontSize": 12,\
"fontSizeCompact": 12,\
"fontWeight": 600,\
"fontWeightCompact": 600\
}

</details>

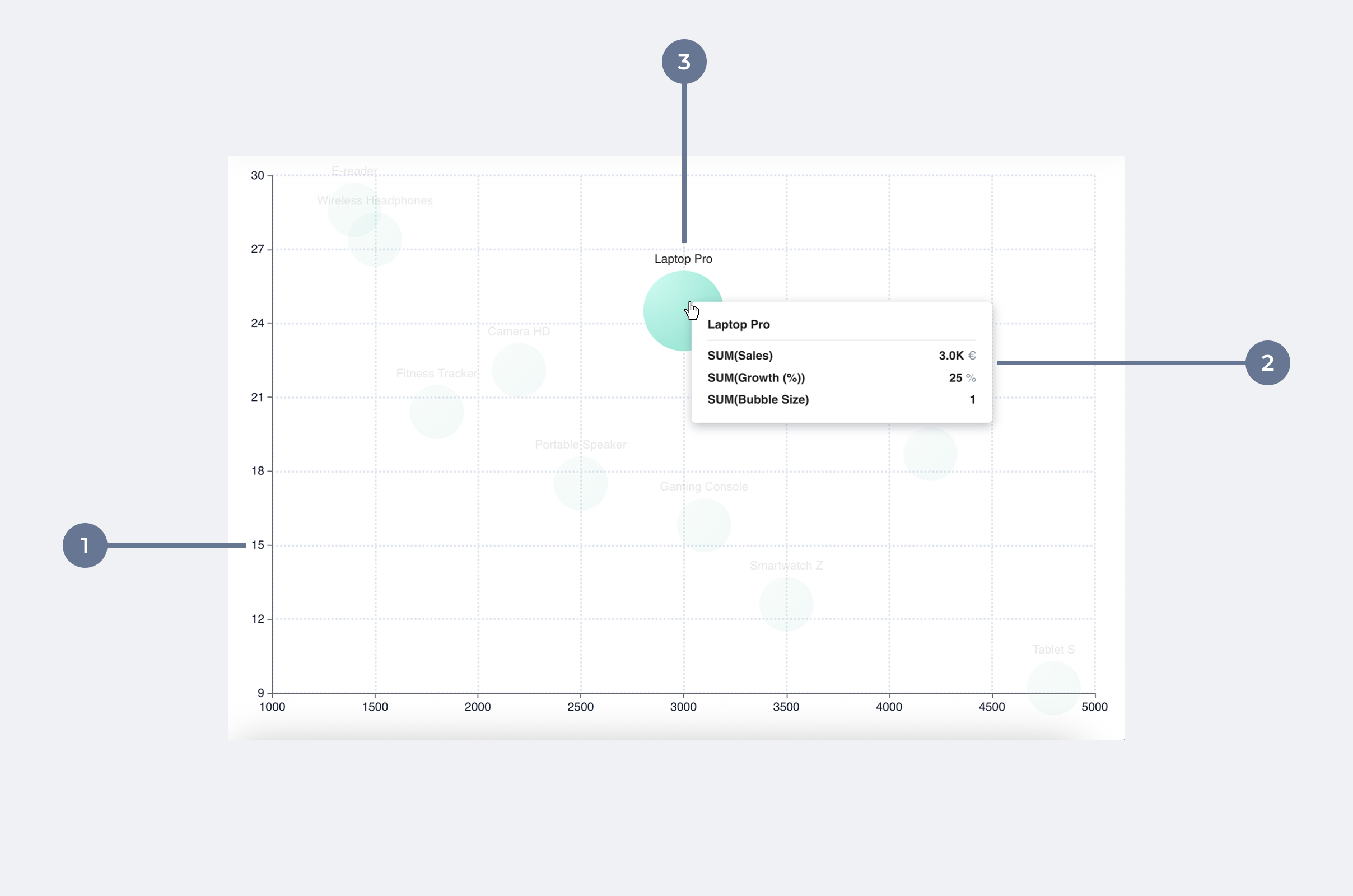

<figure><img src="/files/kYNeb0TUquuajjADCvmG" alt=""><figcaption></figcaption></figure>

1: Axis-label

2: Datalabel

3: Value

***

### Leaderboard <a href="#stackedbarchart" id="stackedbarchart"></a>

<details>

<summary>JSON Default: Leaderboard</summary>

{\
"leaderboard": {\
"categoryLabel": {\
"fontSize": 16,\
"fontSizeCompact": 14,\
"fontWeight": 600,\
"fontWeightCompact": 400\
},\
"legends": {\
"fontSize": 14,\
"fontWeight": 500\
},\
"value": {\
"color": "#172134",\
"fontSize": 12,\
"fontSizeCompact": 12,\
"fontWeight": 600,\
"fontWeightCompact": 600\
}

</details>

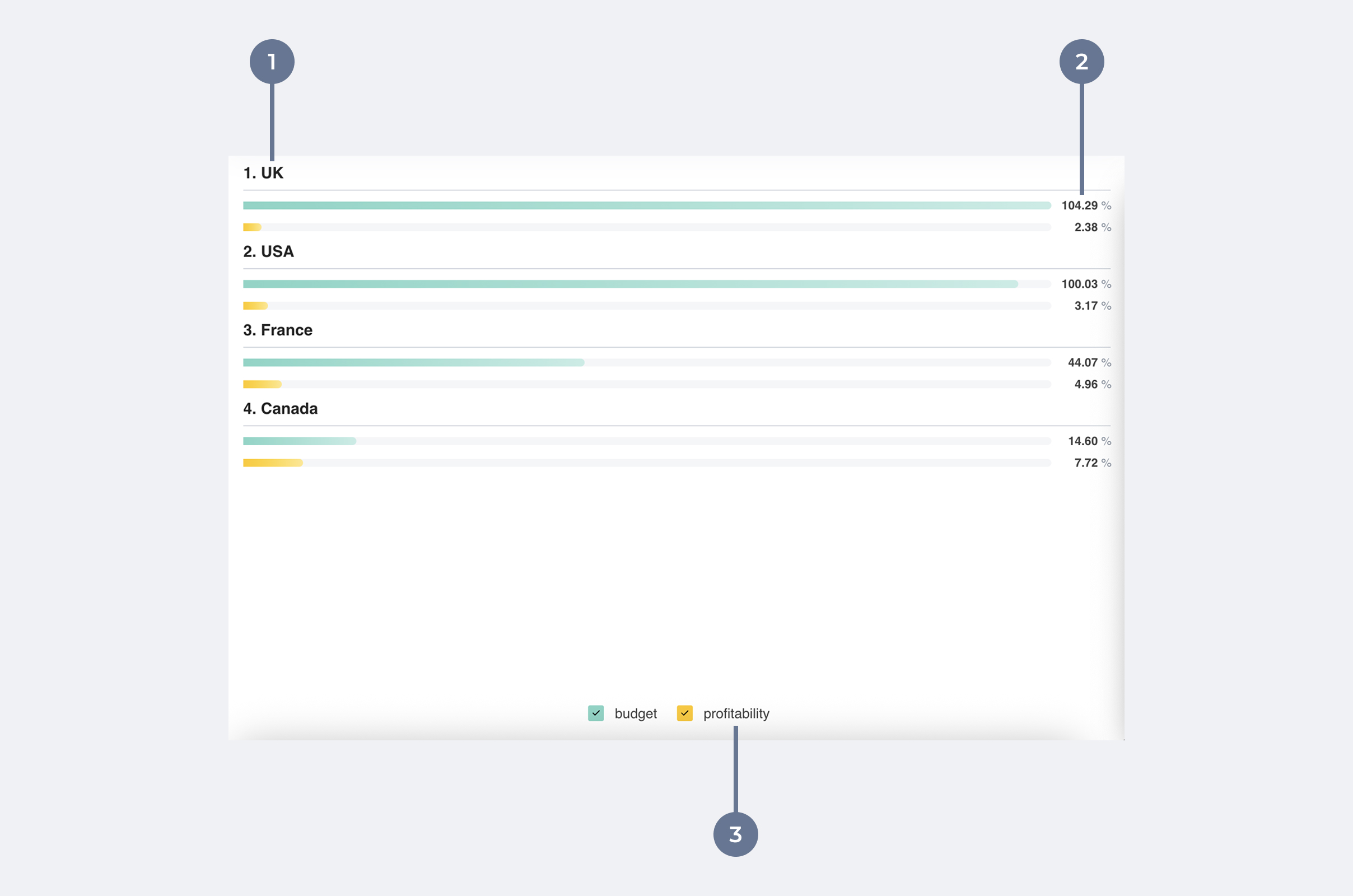

<figure><img src="/files/19fvpObTkQiovDHf9Cf9" alt=""><figcaption></figcaption></figure>

1: Categorylabel

2: Legends

3: Value


---
