Tile Bullet

Tile Bullet
Tile Bullet

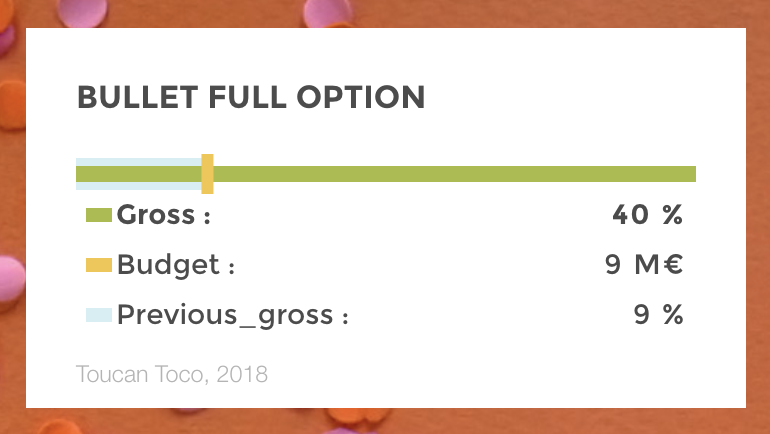

Overview

The vertical bar can be used for the goal, while the horizontal one can be used for the current or ongoing performance.

Options

Option
Mandatory
Description

title

โœ…

Title of your tile

value

โœ…

Column name containing the value represented by the bar

target

โœ…

Column name containing the target to display

comparison

โŒ

Column name containing the comparison to display

source

โŒ

Text displayed to give additional information (ex: data source)

Display

Option
Mandatory
Description

custom width

โŒ

Choose between XS, S, M, L and XL to increase the width of your tile

Default: S

scale

โŒ

Define min and max values. It impacts bar's length.

Enrich Navigation

Option
Mandatory
Description

link to

โŒ

Allows to redirect to a Story or to an external URL when clicking on the tile
