Geographic hierarchy

The Geography hierarchy helps you create a multi-level geographical structure in your data. It allows for drill-down capabilities in your dashboard, enabling users to navigate from broader geographical areas to more specific locations seamlessly.

Step parameters

• Hierarchy level column: The name of the column in which the hierarchy level should be stored.

• Add hierarchy: Allows to add hierarchy levels. At least one hierarchy level must be added.

• Include null vales in results (boolean)*: parameter to include null values in results

Example

Input

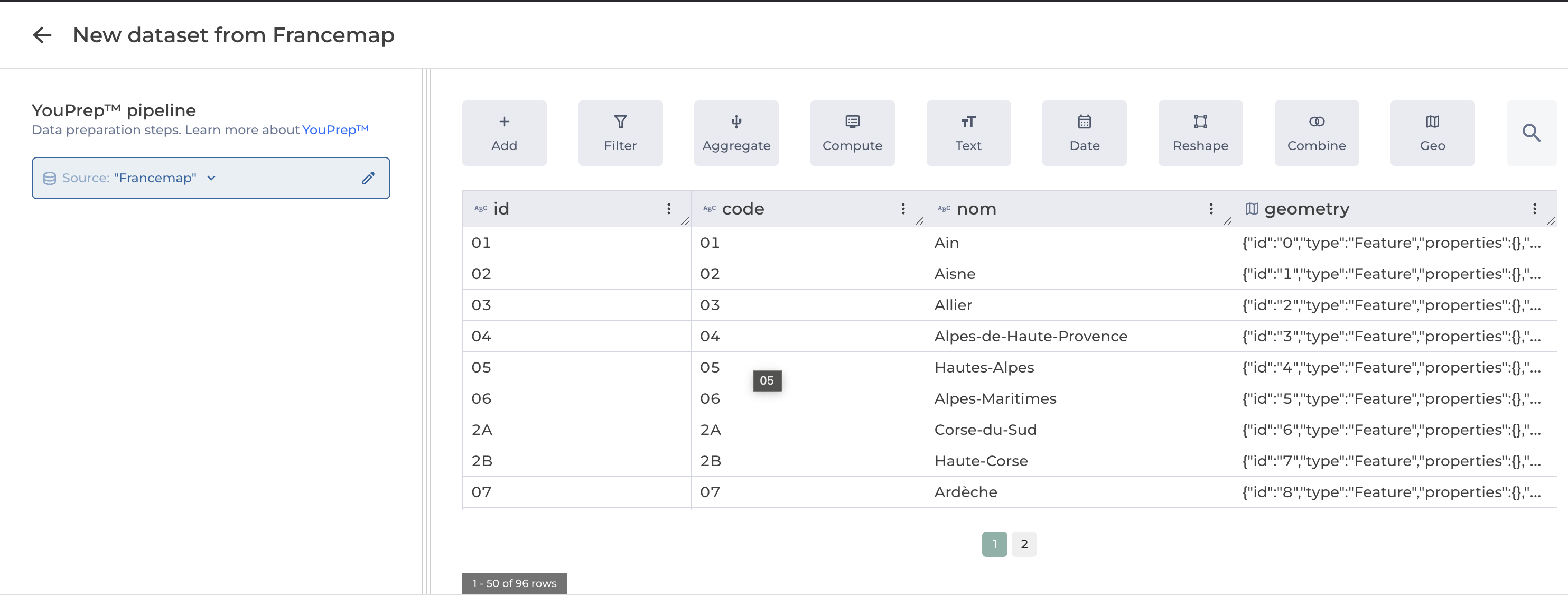

Geo - hierarchy input

Configuration

{
    "hierarchy": "hierarchy_level",
    "add_hierarchy": ["code"]
    "include_nulls": false
}

Output

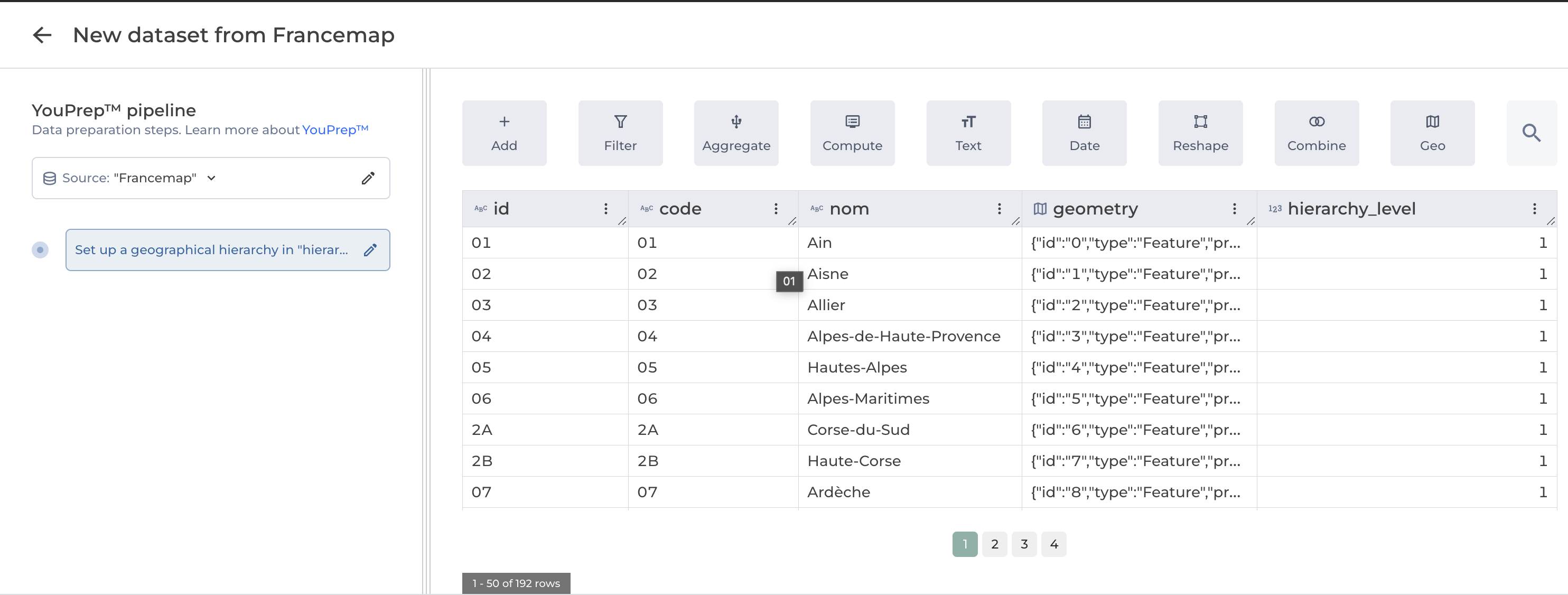

Geo - hierarchy output
